Power Station & Energy Storage Systems

Portable power stations and all-in-one residential ESS solutions from 1kWh to 16kWh for wholesale, distribution and OEM/ODM projects.

Choose by Energy Capacity

6+
Capacity Options
500–6200W
Rated Output Power Range
LiFePO4
LiFePO4 Battery Cells
8000 Cycles
Max Cycle Life @0.5C 90%DOD
B2B ENERGY STORAGE SUPPLY

Built for Wholesale, Distribution & OEM/ODM

Choose a ready-to-sell model or discuss branding, packaging and product configuration for your market.

OEM / ODM

Brand Customization

Support for logo, appearance and packaging customization based on project requirements.

1–16kWh

Flexible Capacity Range

Portable power and residential ESS options for different channel and application needs.

AC + PV

Multiple Charging Options

Models support AC charging and solar PV input with integrated MPPT.

B2B

Bulk Supply Support

Suitable for distributors, wholesalers, solar installers and project buyers.

Request Product Information

Leave your contact details and our team will get back to you with product information and solutions.

Portable Series · Home Backup & Outdoor Use

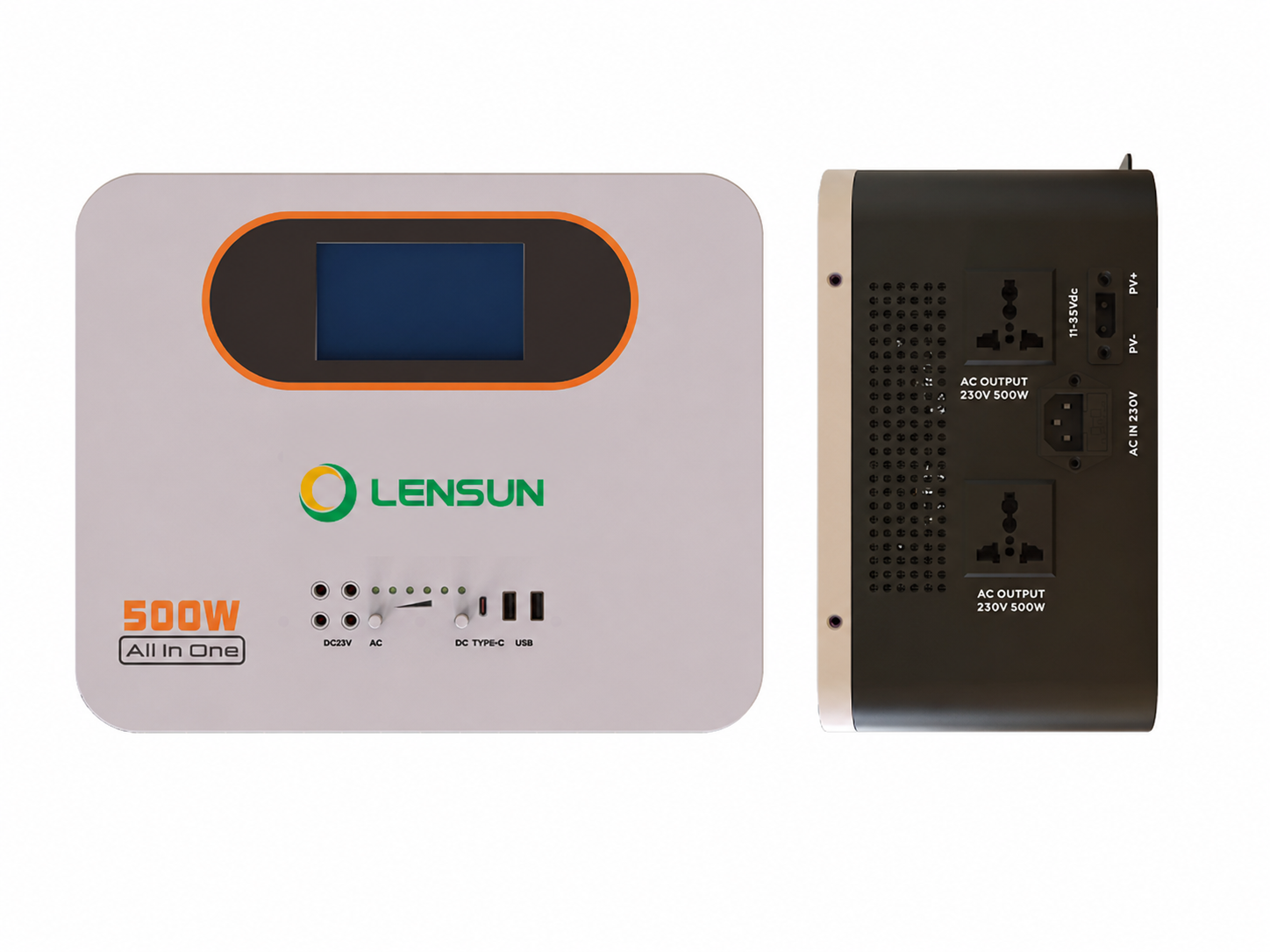

ESS-500W-1000Wh

1kWh Portable Power Station

A pocket-sized power station with built-in inverter and PV MPPT, providing AC/DC dual output. Ideal for camping, road trips, balcony solar charging, and short-term backup for routers, refrigerators, and other low-power devices.

Rated Output
AC 500W
Battery Capacity
1004.8Wh
Weight
10.5kg
Dimensions
304×180×245mm
KEY FEATURES

Designed for Practical Portable Power

Core functions are presented here before the full engineering specification table.

LiFePO4 Battery

Lithium iron phosphate battery chemistry for energy storage applications.

Integrated MPPT

Solar PV input is managed through the built-in MPPT charging system.

AC + DC Outputs

AC outlets plus DC and USB interfaces support multiple device types.

AC + Solar Charging

Charge from AC input or compatible solar PV input according to model specifications.

APPLICATIONS

One Product Family, Multiple Use Cases

Portable ESS models can be positioned for backup power, outdoor use, mobile power and solar-assisted charging scenarios.

Home BackupOutdoor & CampingRV / Mobile PowerSolar Charging
Full Specification

Technical Specifications

Battery Specifications
Battery Capacity314Ah
Battery Type3.2V LiFePO4 Single Cell
Battery Energy1004.8Wh
Input
Charging Power500W Max
AC Input PortC14 Inlet Socket × 1
AC Input Voltage90–280V AC
AC Input Frequency45–65Hz
PV Input Power300W Max
PV Input Range11–55V / 10A Max
AC Output
Output PowerAC 500W
AC Output Voltage230V 50Hz
AC Outlets1
DC Output
DC (5521) × 412V / 4A, Total 48W Max
USB-CPD 20W
USB-A 1QC 20W
USB-A 25V / 3A
Mechanical Specifications
Dimensions304 × 180 × 245mm
Weight10.5kg
1kWh Product Detail Image
Portable Series · Home Backup & Outdoor Use

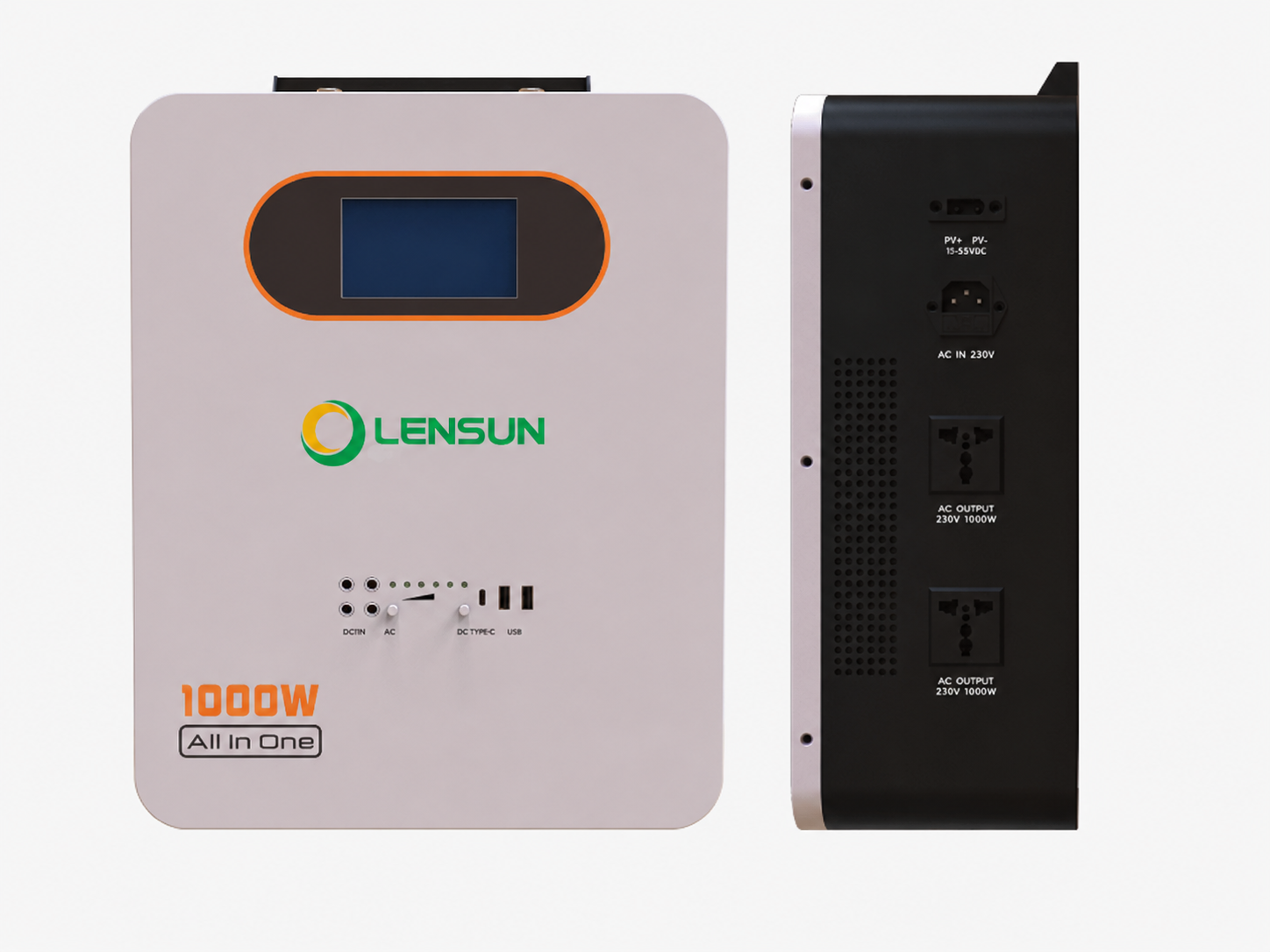

ESS-1000W-2000Wh · Model A

2kWh Portable Power Station

Dual-cell design doubles both capacity and output. Suitable for balcony solar systems, RV camping, and home backup powering refrigerators, lights, routers, and multiple devices.

Rated Output
AC 1000W
Battery Capacity
2009.6Wh
Weight
19.5kg
Dimensions
304×240×304mm
KEY FEATURES

Designed for Practical Portable Power

Core functions are presented here before the full engineering specification table.

LiFePO4 Battery

Lithium iron phosphate battery chemistry for energy storage applications.

Integrated MPPT

Solar PV input is managed through the built-in MPPT charging system.

AC + DC Outputs

AC outlets plus DC and USB interfaces support multiple device types.

AC + Solar Charging

Charge from AC input or compatible solar PV input according to model specifications.

APPLICATIONS

One Product Family, Multiple Use Cases

Portable ESS models can be positioned for backup power, outdoor use, mobile power and solar-assisted charging scenarios.

Home BackupOutdoor & CampingRV / Mobile PowerSolar Charging
Full Specification

Technical Specifications

Battery Specifications
Battery Capacity628Ah
Battery Type3.2V LiFePO4 Dual Cell
Battery Energy2009.6Wh
Input
Charging Power800W Max
AC Input PortC14 Inlet Socket × 1
AC Input Voltage90–280V AC
AC Input Frequency45–65Hz
PV Input Power550W Max
PV Input Range11–55V / 15A Max
AC Output
Output PowerAC 1000W
AC Output Voltage230V 50Hz
AC Outlets2
DC Output
DC (5521) × 412V / 4A, Total 48W Max
USB-CPD 20W
USB-A 1QC 20W
USB-A 25V / 3A
Mechanical Specifications
Dimensions304 × 240 × 304mm
Weight19.5kg
Portable Series · Home Backup & Outdoor Use
ESS-1800W-4000Wh

4kWh Portable Power Station

Four-cell high-capacity design with 1800W continuous output for air conditioners and high-power appliances. Suitable for extended outages, RVs, and small commercial backup power.

Rated Output
AC 1800W
Battery Capacity
4019.2Wh
Weight
32kg
Dimensions
336×239×355mm
KEY FEATURES

Designed for Practical Portable Power

Core functions are presented here before the full engineering specification table.

LiFePO4 Battery

Lithium iron phosphate battery chemistry for energy storage applications.

Integrated MPPT

Solar PV input is managed through the built-in MPPT charging system.

AC + DC Outputs

AC outlets plus DC and USB interfaces support multiple device types.

AC + Solar Charging

Charge from AC input or compatible solar PV input according to model specifications.

APPLICATIONS

One Product Family, Multiple Use Cases

Portable ESS models can be positioned for backup power, outdoor use, mobile power and solar-assisted charging scenarios.

Home BackupOutdoor & CampingRV / Mobile PowerSolar Charging
Full Specification

Technical Specifications

Battery Specifications
Battery Capacity1256Ah
Battery Type3.2V LiFePO4 Four Cells
Battery Energy4019.2Wh
Input
Charging PowerAC 1500W Max
AC Input PortC14 Inlet Socket × 1
AC Input Voltage90–280V AC
AC Input Frequency45–65Hz
PV Input Power1200W Max
PV Input Range18–110V / 15A Max
AC Output
Output PowerAC 1800W
AC Output Voltage230V 50Hz
AC Outlets2
DC Output
DC (5521) × 412V / 4A, Total 48W Max
USB-CPD 20W
USB-A 1QC 20W
USB-A 25V / 3A
Mechanical Specifications
Dimensions336 × 239 × 355mm
Weight32kg
All-in-One Series · Home Energy Storage
ESS-6200W-5kWh

5kWh All-in-One Solar Storage System

Grid-tied operation with 6200W inverter output. Floor-standing all-in-one design with an IP41 enclosure rating for residential energy storage installations.

Rated Output
6200W
Battery Capacity
5120Wh
Operating Mode
Grid-Tied
Cycle Life
8000 Cycles
KEY FEATURES

Integrated Residential Energy Storage

The all-in-one series combines battery storage, inverter output and PV input in one floor-standing system.

LiFePO4 Battery

Integrated lithium iron phosphate battery storage matched to the selected system capacity.

6200W Inverter Output

Rated inverter output of 6200W across the current residential ESS series.

PV MPPT Input

High-voltage PV input with MPPT operating range defined in the model specifications.

All-in-One Architecture

Battery, power electronics and system controls are integrated into one enclosure.

SYSTEM FLOW

How the System Connects

Grid-tied model for residential solar self-consumption applications.

Solar PVDC generation
MPPT InputPV conversion
All-in-One ESSESS-6200W-5kWh
Home LoadsAC supply
Operating mode: Grid-Tied
Full Specification

Technical Specifications

Battery Specifications
Battery TypeLiFePO4 3.2V / 100Ah
Battery Voltage Range40V–60V
Max Charging Current100A
Max Output Current100A
Rated Charging Power4000W
Rated Discharging Power6200W
Battery Capacity5120Wh
PV Input
Max Input Power6000W
Start-up Voltage120V
MPPT Operating Voltage Range120–450V
Max Input Voltage500V
Single MPPT Input Current20A
Single MPPT Max Input Current22A
MPPT Input Channels1
AC Output — Grid-Tied
Rated Output Power6200W
Max Output Power6200W
Rated Output Voltage220V / 230V
Output Voltage Range180–270V
Rated Frequency50 / 60Hz
Max Output Current27A
Transfer Time10ms
Power Factor0.8 leading ~ 0.8 lagging
Total Harmonic Distortion (THD)<3%
Mechanical Specifications
Dimensions550 × 280 × 807mm
Operating Temperature-15°C ~ 55°C
Enclosure RatingIP41
Battery Life8000 Cycles, 0.5C, 90% DOD (25°C)
All-in-One Series · Home Energy Storage
ESS-6200W-10kWh

10kWh All-in-One Solar Storage System

Off-Grid operation with 10547Wh large capacity storage, covering daily power fluctuations for homes requiring independent energy supply.

Rated Output
6200W
Battery Capacity
10547Wh
Operating Mode
Off-Grid
Cycle Life
6000 Cycles
KEY FEATURES

Integrated Residential Energy Storage

The all-in-one series combines battery storage, inverter output and PV input in one floor-standing system.

LiFePO4 Battery

Integrated lithium iron phosphate battery storage matched to the selected system capacity.

6200W Inverter Output

Rated inverter output of 6200W across the current residential ESS series.

PV MPPT Input

High-voltage PV input with MPPT operating range defined in the model specifications.

All-in-One Architecture

Battery, power electronics and system controls are integrated into one enclosure.

SYSTEM FLOW

How the System Connects

Off-grid model for independent residential energy supply applications.

Solar PVDC generation
MPPT InputPV conversion
All-in-One ESSESS-6200W-10kWh
Home LoadsAC supply
Operating mode: Off-Grid
Full Specification

Technical Specifications

Battery Specifications
Battery TypeLiFePO4 3.2V / 314Ah
Battery Voltage Range40V–60V
Max Charging Current200A
Max Output Current200A
Rated Charging Power4000W
Rated Discharging Power6200W
Battery Capacity10547Wh
PV Input
Max Input Power6000W
Start-up Voltage120V
MPPT Operating Voltage Range120–450V
Max Input Voltage500V
Single MPPT Input Current20A
Single MPPT Max Input Current22A
MPPT Input Channels1
AC Output — Off-Grid
Rated Output Power6200W
Max Output Power6200W
Rated Output Voltage220V / 230V
Output Voltage Range180–270V
Rated Frequency50 / 60Hz ± 2%
Max Output Current27A
Total Harmonic Distortion (THD)<3%
Mechanical Specifications
Dimensions550 × 280 × 987mm
Operating Temperature-15°C ~ 55°C
Enclosure RatingIP41
Battery Life6000 Cycles, 0.5C, 90% DOD (25°C)
All-in-One Series · Home Energy Storage
ESS-6200W-16kWh

16kWh All-in-One Solar Storage System

Maximum capacity in the series. Off-Grid energy storage solution with 16077Wh capacity for villas and large homes. Supports parallel connection for further expansion.

Rated Output
6200W
Battery Capacity
16077Wh
Operating Mode
Off-Grid
Cycle Life
6000 Cycles
KEY FEATURES

Integrated Residential Energy Storage

The all-in-one series combines battery storage, inverter output and PV input in one floor-standing system.

LiFePO4 Battery

Integrated lithium iron phosphate battery storage matched to the selected system capacity.

6200W Inverter Output

Rated inverter output of 6200W across the current residential ESS series.

PV MPPT Input

High-voltage PV input with MPPT operating range defined in the model specifications.

All-in-One Architecture

Battery, power electronics and system controls are integrated into one enclosure.

SYSTEM FLOW

How the System Connects

Off-grid model with the highest storage capacity in the current series.

Solar PVDC generation
MPPT InputPV conversion
All-in-One ESSESS-6200W-16kWh
Home LoadsAC supply
Operating mode: Off-Grid
Full Specification

Technical Specifications

Battery Specifications
Battery TypeLiFePO4 3.2V / 314Ah
Battery Voltage Range40V–60V
Max Charging Current200A
Max Output Current200A
Rated Charging Power4000W
Rated Discharging Power6200W
Battery Capacity16077Wh
PV Input
Max Input Power6000W
Start-up Voltage120V
MPPT Operating Voltage Range120–450V
Max Input Voltage500V
Single MPPT Input Current20A
Single MPPT Max Input Current22A
MPPT Input Channels1
AC Output — Off-Grid
Rated Output Power6200W
Max Output Power6200W
Rated Output Voltage220V / 230V
Output Voltage Range180–270V
Rated Frequency50 / 60Hz ± 2%
Max Output Current27A
Total Harmonic Distortion (THD)<3%
Mechanical Specifications
Dimensions550 × 280 × 987mm
Operating Temperature-15°C ~ 55°C
Enclosure RatingIP41
Battery Life6000 Cycles, 0.5C, 90% DOD (25°C)
Portable Power Station
500W 1000Wh

1kWh Portable Power Station

500W rated portable power station with 1kWh cell capacity, wide-range AC input and 300W maximum PV charging input.

Rated Output
500W
Battery Capacity
1kWh
Dimensions
260×320×150mm
Ingress Rating
IP21
KEY FEATURES

Core Power & Charging Functions

Key operating specifications are summarized here before the complete technical table.

Wide AC Input

90–280VAC input range with 45–65Hz frequency range.

Solar PV Charging

Dedicated PV input supports solar-assisted charging within the specified voltage range.

Utility + Solar Charging

Combined charging capability is specified for utility and solar input.

Portable Power Outputs

AC and auxiliary output interfaces are provided according to the model specification.

APPLICATIONS

Flexible Backup & Mobile Power

Suitable for portable backup power and solar-assisted power applications.

Home BackupOutdoor PowerMobile PowerSolar Charging
Full Specification

Technical Specifications

Core Electrical
Model500W 1000Wh
Rated Power500W
Cell Capacity1kWh
Built-in Cell Capacity3.2V 314Ah
AC Input & Output
AC Output Voltage185–230VAC, 50–60Hz
AC Output Power500W Max
AC Input Voltage90–280VAC, 45–65Hz
AC Charging Power500W Max
PV & Charging
PV Charging Power300W Max
PV Input Voltage11–55Vdc
Utility + Solar Charging Power500W Max
Solar Panel150–550W × 1 pc
Interfaces & Mechanical
USB Output5V 15W × 2 pcs
Type-C Output5V 20W × 1 pc
DC-5521 Output12V 48W × 4 pcs
Operating Temperature-10°C ~ +50°C
Ingress ProtectionIP21
Dimensions260 × 320 × 150mm
Other Capacities

Other Capacity Options

Portable Power Station
1000W 2000Wh

2kWh Portable Power Station

1000W rated portable power station with 2kWh cell capacity, wide-range AC input and 550W maximum PV charging input.

Rated Output
1000W
Battery Capacity
2kWh
Dimensions
410×330×155mm
Ingress Rating
IP21
KEY FEATURES

Core Power & Charging Functions

Key operating specifications are summarized here before the complete technical table.

Wide AC Input

90–280VAC input range with 45–65Hz frequency range.

Solar PV Charging

Dedicated PV input supports solar-assisted charging within the specified voltage range.

Utility + Solar Charging

Combined charging capability is specified for utility and solar input.

Portable Power Outputs

AC and auxiliary output interfaces are provided according to the model specification.

APPLICATIONS

Flexible Backup & Mobile Power

Suitable for portable backup power and solar-assisted power applications.

Home BackupOutdoor PowerMobile PowerSolar Charging
Full Specification

Technical Specifications

Core Electrical
Model1000W 2000Wh
Rated Power1000W
Cell Capacity2kWh
Built-in Cell Capacity6.4V 314Ah
AC Input & Output
AC Output Voltage185–230VAC, 50–60Hz
AC Output Power1000W Max
AC Input Voltage90–280VAC, 45–65Hz
AC Charging Power1000W Max
PV & Charging
PV Charging Power550W Max
PV Input Voltage11–55Vdc
Utility + Solar Charging Power1000W Max
Solar Panel150–550W × 1 pc
Interfaces & Mechanical
USB Output5V 15W × 2 pcs
Type-C Output5V 20W × 1 pc
DC-5521 Output12V 48W × 4 pcs
Operating Temperature-10°C ~ +50°C
Ingress ProtectionIP21
Dimensions410 × 330 × 155mm
Other Capacities

Other Capacity Options

Portable Power Station
2000W 4000Wh

4kWh Portable Power Station

2000W rated portable power station with 4kWh cell capacity, 1200W maximum PV charging power and 1500W maximum charging power.

Rated Output
2000W
Battery Capacity
4kWh
Dimensions
550×410×160mm
Ingress Rating
IP21
KEY FEATURES

Core Power & Charging Functions

Key operating specifications are summarized here before the complete technical table.

Wide AC Input

90–280VAC input range with 45–65Hz frequency range.

Solar PV Charging

Dedicated PV input supports solar-assisted charging within the specified voltage range.

Utility + Solar Charging

Combined charging capability is specified for utility and solar input.

Portable Power Outputs

AC and auxiliary output interfaces are provided according to the model specification.

APPLICATIONS

Flexible Backup & Mobile Power

Suitable for portable backup power and solar-assisted power applications.

Home BackupOutdoor PowerMobile PowerSolar Charging
Full Specification

Technical Specifications

Core Electrical
Model2000W 4000Wh
Rated Power2000W
Cell Capacity4kWh
Built-in Cell Capacity12.8V 314Ah
AC Input & Output
AC Output Voltage185–230VAC, 50–60Hz
AC Output Power2000W Max
AC Input Voltage90–280VAC, 45–65Hz
AC Charging Power1500W Max
PV & Charging
PV Charging Power1200W Max
PV Input Voltage18–110Vdc
Utility + Solar Charging Power1500W Max
Solar Panel600W × 2 pcs
Other Specifications
USB Output5V 15W × 1 pc
Operating Temperature-10°C ~ +50°C
Ingress ProtectionIP21
Dimensions550 × 410 × 160mm
Other Capacities

Other Capacity Options

All-in-One Energy Storage System
IESS-6200W-5kWh

5kWh All-in-One Energy Storage System

All-in-one 5kWh energy storage system with 6200W rated AC output, 5120Wh LiFePO4 battery capacity and up to 6000W PV input.

Rated Output
6200W
Battery Capacity
5120Wh
Max PV Input
6000W
MPPT Range
120–450V
KEY FEATURES

Integrated Solar Storage & AC Power

Core battery, PV and AC specifications are summarized before the complete technical table.

LiFePO4 Battery

51.2V / 100Ah lithium iron phosphate battery configuration.

6200W AC Output

Rated and maximum AC output power are specified at 6200W.

6000W PV Input

PV input supports up to 6000W with a 120–450V MPPT operating range.

10ms Transfer

Typical bypass-to-inverter transfer time is specified at 10ms.

APPLICATIONS

All-in-One Energy Storage

Integrated battery, PV input and AC power functions for energy storage and backup applications.

Home Energy StorageSolar StorageBackup PowerMobile Deployment
Full Specification

Technical Specifications

Battery Specifications
Battery TypeLiFePO4, 51.2V / 100Ah
Battery Voltage Range40V–60V
Max Charging Current200A
Max Output Current200A
Rated Charging Power4000W
Rated Discharging Power6200W
Battery Capacity5120Wh
PV Input
Maximum Input Power6000W
Start-up Voltage120V
MPPT Operating Voltage Range120–450V
Maximum Open-Circuit Voltage500V
Single MPPT Input Current20A
Single MPPT Max. Input Current22A
MPPT Input Channels1
AC Input
Rated Input Voltage220V / 230V
Input Voltage Range — UPS Mode170–280Vac ±2%
Input Voltage Range — APL Mode90–280Vac ±2%
Input Frequency50Hz / 60Hz, auto-sensing
50Hz Frequency Range47±0.3Hz – 55±0.3Hz
60Hz Frequency Range57±0.3Hz – 65±0.3Hz
Max Bypass Overload Current40A
Transfer Time10ms typical
Maximum Efficiency>95%
AC Output
Rated Output Power6200W
Maximum Output Power6200W
Rated Output Voltage200V / 208V / 220V / 230V / 240V
Output Voltage Error±5%
Output Voltage Range180–270V
Rated Operating Frequency50 / 60Hz ±2%
Maximum Output Current27A
Other Capacities

Other Capacity Options

Request a B2B Quote

Tell us your market and purchasing requirements. The selected product is filled automatically.
